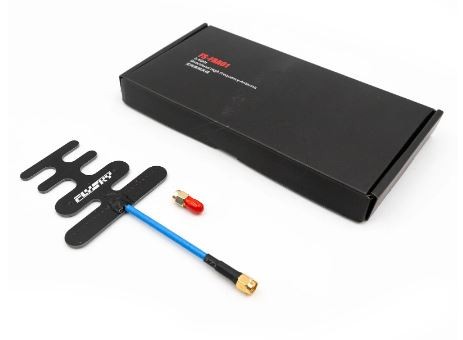

Flysky High Frequency Antenna For ST8

FEATURES:

It is suitable for the modification of various 2.4G tuners and 2.4G model airplane remote control.

FS-FRA01 is an orthodox 2.4G directional antenna with a working frequency of 2.400~2.484GHz and a gain of up to 8dBi.

Taking into account the horizontal and vertical radiation angles, the radiation angle reaches a balanced 100 degrees, and the signal release is stable and superior.

With a compact size and light-weight, no worry to give any burden to your RC Model.

SPECS:

Product Model: FS-FRA01

Working Frequency: 2400～2484MHz

Gain: 8dBi

Standing Wave: less than 1.5

Antenna Efficiency: greater than 70%

Input Impedance: 50 ohm

Polarization Method: vertical polarization

Interface: RP-SMA

Horizontal Angle: 100°

Vertical Angle: 100°

Temperature Range: -40℃ ~+85℃

Dimensions: 165 x 78 x 9 mm

Body Weight: 18.6g

Color: Black
