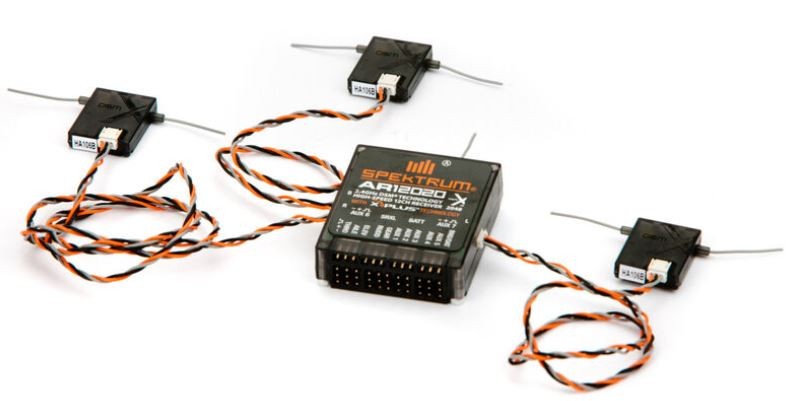

Spektrum AR12020 12-Channel DSMX X-Plus Receiver

KEY FEATURES:

12-channel full range receiver

Includes one internal and three remote receivers

SmartSafe™ failsafe system

Flight Log and Telemetry compatible (optional)

Patented MultiLink™ receiver technology

X-Plus compatible

QuickConnect™

2048 Resolution

High-speed 11ms operation when used with capable transmitters

OVERVIEW:

The AR12020 full range 12-channel, X-Plus™ compatible receiver features DSM2&erg; and DSMX® technology and is compatible with all Spektrum™ and JR® aircraft radios that support DSM2 and DSMX technology including: JR12X, 11X, X9503, X9303, Spektrum DX10t, DX8, DX7, DX7se, DX6i, DX5e and Module Systems.

APPLICATIONS:

Full range up to 12-channel aircraft including:

• All types and sizes of glow, gas and electric powered airplanes

• All types and sizes of no-powered gliders

• All types and sizes of glow, gas and electric powered helicopters

INCLUDED:

AR12020 Receiver main unit

Remote receiver (3) - SPM9645

24" remote receiver extension (1) - SPM9013

12" remote receiver extension (1) - SPM9012

9" remote receiver extension (1) - SPM9011

User Guide

Male/Female bind plug - SPM6803

IMPORTANT: Not for use in airplanes that have full carbon fuselages OR that have significant carbon or conductive structures. We recommend using either the AR6255 or AR9300/AR9310 receivers for carbon fuselage applications.

NOTICE: The AR12020 receiver is not compatible with the Spektrum DX6 park flyer transmitter.
