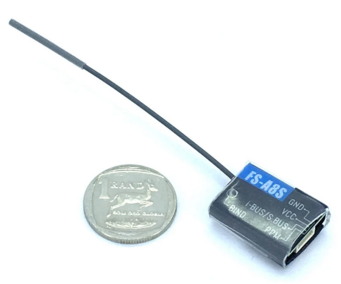

Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output

Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.

SPECS:

Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

Band width: 500KHz

Band number: 135

RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A

Modulation type: GFSK

DSC port: PPM/i-BUS/S.BUS

Transfer method: FHSS

Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

Antenna length: 26mm (Not including brass contacts)

Input power supply: 4.0-8.4V

Display method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Each channel data: depend on the transmitter

Channel delay: smaller than 15mS

Size: 20x14x5.3mm

Weight: 1.2g

Certificate: CE0678, FCCID: N45ZA8S00

Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
