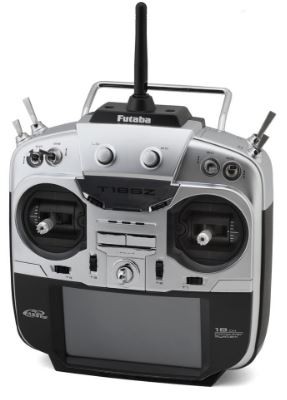

Futaba 18SZ 2.4GHZ Radio W/ R7208SB M2 Receiver
Fly with precision control and the ability to receive essential telemetry with the 16IZS 18-Channel RC Transmitter & R7208SB Receiver for Airplanes from Futaba. Supporting the FASSTest and S.BUS2 systems, this transmitter offers bidirectional data transmission over the 2.4 GHz wireless spectrum, and it lets you utilize multiple servos, gyros, and telemetry sensors with minimum cabling required.
The telemetry received can be read aloud with the voice telemetry feature or displayed on the HVGA 4:3 color backlit LCD touchscreen, which is transflective for both indoor and outdoor use. When flying, the airplane's throttle is ratcheting, while steering is fine and precise, thanks to a single ball bearing for each stick axis and a high-cycle potentiometer. Please note that the remote comes complete with an R7208SB S.BUS2 dual-antenna receiver for your aircraft.
Both Real and Simulation:
You can fly real RC aircraft or use the transmitter like a joystick in simulation software on your Windows-based PC. Simply connect it to your PC with an optional cable connected to its USB-C port.
RECEIVER COMPATIBILITY:
S-FHSS Protocol:
R2008GS
R2008SB
R2106SB
R2001SB
R2000SBM
T-FHSS Telemetry Protocol:
R3001SB
R3004SB
R3006SB
R3008SB
T-FHSS Mono (Non-Telemetry):
R3206SBM
R3106GF
FASST7 and FASST Multi:
R6004FF
R6008HS
R6014HS
R6016HF
R616FFM
R617FS
R6202SBW
R6203SB
R6208SB
R6303SB
R6303SBE
FASSTest12 and FASSTest18:
R7003SB
R7006SB
R7008SB
R7108SB
R7014SB
OTHER FEATURES:
18 channels (16 linear and 2 switched)
Mount accessories onto the multi-holder with an optional M3 screw
Use an optional microSD to store model data files and update firmware
Vibration alerts for low voltage and other user-defined alarms
Powerful processor allows for channel mixing to operate on a curve for precise settings and improved feel
SPECS:
Transmitter Frequency: 2.4 GHz
Operating System: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
Power Supply: 7.4 V LT2F2000B LiPo Battery
RF Power Output: 100 mW EIRP
Power Requirement: 6.6 V LiFe Battery
Display: Panel Type LCD
Display Size: 4.3"
Native Resolution: 480 x 320
Touchscreen : Yes
Inputs/Outputs: USB I/O , 1 x USB-C Female Input/Output
Media/Memory Card Slot: Single Slot: microSD (Unspecified Type)
Mobile App Compatible: No
Battery: Lithium-Ion Polymer (LiPo)
Physical Color : Silver / Black
Cable Length: Not Specified by Manufacturer
Dimensions: 1.9 x 1 x 0.6" / 47.3 x 24.9 x 14.3 mm (Receiver)
Weight: 0.4 oz / 12 g (Receiver)
