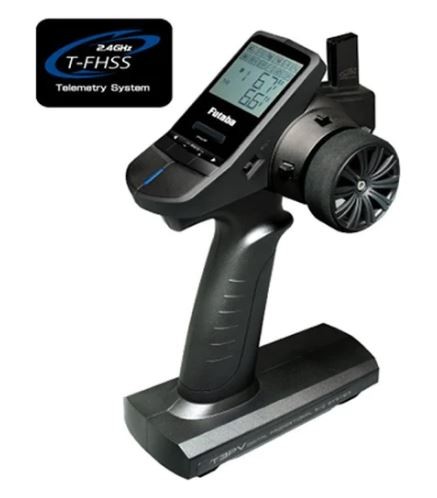

Futaba 3PV 2.4GHZ Radio W/ R304SB Receiver

The Futaba 3PV Radio System is sophisticated, powerful and easy to use. Pick up the 3PV and instantly feel how lightweight it is. Once you access the programming menu on the easy-to-read screen, you will instantly recognize how sophisticated the programming is. But the real experience happens when you get to take advantage of the 3PV's super-fast response rate. This is a system that can make a difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C's most versatile surface system.

This version of the 3PV with R304SB telemetry receiver (FUTK3200) is for those that want to keep an eye on their receiver voltage. But the 3PV is also available with a high-voltage R203GF receiver (FUTK3201) that is perfect for brushless ESCs and digital servos.

FEATURES:

FHSS/S-FHSS/T-FHSS* protocols

10-model memory

Model Reset

Model Name (4-Character)

Low Battery Alarm

Link Mode (T-FHSS only)

DT3 Selection

SW1

Steering Trim

Throttle Trim

Channel 4 Trim

Sub Trim

Steering Dual Rates

Steering End Point Adjustment spacer

Throttle End Point Adjustment

Channel 3 End Point Adjustment

Channel 4 End Point Adjustment

4WS/Brake Mixing

Steering Servo Reversing

Throttle Servo Reversing

Channel 3 Servo Reversing

Channel 4 Servo Reversing

Steering Exponential

Throttle Exponential

Throttle Fail Safe

ABS Function

Model Data Copy

Auto Power-Off after 10 minutes

*Note: T-FHSS available only with R304SB receiver.

SPECS:

3PV Transmitter:

Type: 3-Channel FHSS/S-FHSS/T-FHSS*

Includes: 3-Channel R304SB Receiver

Requires: (4) "AA" alkaline batteries, or 6.6V 1900mAh LiFe battery (HCAM6521), or 6V NiMH Battery (FUTM1482)

R304SB Receiver:

Type: 3-Channel FHSS/S-FHSS/T-FHSS

Input Power: 4.8V-7.4V

Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)

Weight: 0.23 oz (6.6 g)
