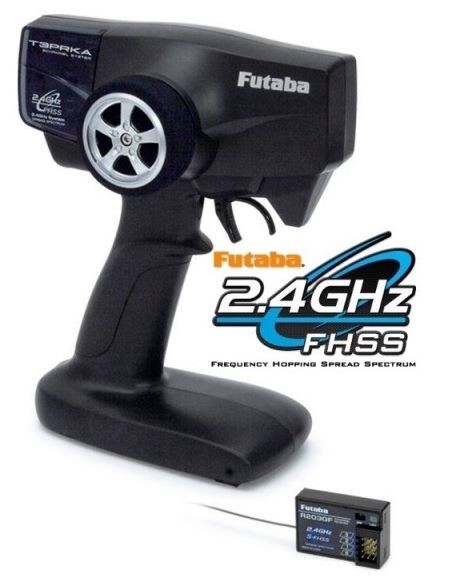

Futaba 3PRKA w/ R203GF Receiver
FEATURES:
STEERING TRIM:
Steering neutral adjustments can be made by moving the steering trim knob to the left or right.
THROTTLE TRIM:
Throttle neutral adjustments can be made moving the throttle trim to the left or right.
STEERING DUAL RATES:
Use this function to adjust the steering travel of your model.
STEERING SERVO REVERSING:
This function reverses the rotation direction of the steering servo.
THROTTLE SERVO REVERSING:
This function reverses the rotation direction of the throttle servo.
THROTTLE END POINT ADJUSTMENT (EPA):
This function is used to adjust the forward and brake side servo travel. Each direction can be adjusted independent of each other. Use this feature to set the throttle servo travel.
CH3 FUNCTION:
One other channel can be sued besides the steering wheel and the throttle operation. Right and left operation of two actions can be done by using the servo. CH3 cannot operate EPA function and servo function linearly.
CONTENTS:
YOUR T3PRKA INCLUDES THE FOLLOWING COMPONENTS:
T3PRKA Transmitter
R203GF Receiver
SSW-GS
Mini Screwdriver
TRANSMITTER SPECS:
FHSS SYSTEM, WHEEL TYPE, 3 CHANNELS
COMMUNICATION METHOD:
One-way operating system
MAXIMUM OPERATING RANGE:
80m (Optimum condition)
FOR SAFETY:
F/S, ID
TRANSMITTER FREQUENCY:
2.4 GHz band
POWER REQUIREMENT:
(Dry Cell Battery) Penlight x 4 (6 V)
CURRENT DRAIN:
100 mA or less
TRANSMISSION ANTENNA:
1/2λ di-pole
RECEIVER SPECS:
R203GF
SIZE:
39 x 26 x 10 mm
1.54 x 1.02 x 0.39 in
WEIGHT:
8 g
0.28 oz
OPERATING VOLTAGE:
DC 4.8-7.4V
