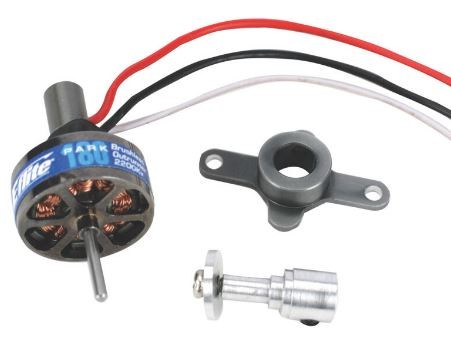

E Flite - 180 Outrunner 2200kV Plane Motor

Overview

Ideal for 3D models 2–3 oz (55–85 g) and sport and scale models 3–6 oz (85–170 g), or models requiring up to 30 watts of power.

Key Features

Ideal for 3D models weighing 2–3 oz (55–85 g) and sport and scale models weighing 3–6 oz (85–170 g)
Ideal for indoor and outdoor small aerobatic park flyers
Extremely quiet and lightweight—just .3 oz (8.5 g)
High-torque, direct-drive alternative to inrunner brushless motors
Designed for firewall mount or carbon tube mount
4- to 8-cell Ni-Cd/Ni-MH or 2–3S Li-Po
Up to 30 watts
Includes prop adapter
Includes mount, mounting hardware and 2mm gold BL connectors
Upgraded performance for indoor motors
High-quality construction with ball bearings and hardened steel shaft

Specs:

Type:     Brushless outrunner
Size:     180
Bearings or Bushings:     Two 1.5 x 4 x 2mm Bearings
Recommended Prop Range:     3 x 3 to 6 x 3 ‘Direct Drive’ for 2S or 4 x 4 or 4.5 x 3 for 3S
Voltage:     4.8–11.4V
RPM/Volt (Kv):     2200
Resistance (Ri):     .91 ohms
Idle Current (Io):     .30A @ 8V
Continuous Current:     2.6A
Maximum Burst Current:     3.2A (15 sec)
Cells:     2–3S Li-Po or 4–8 Ni-Cd/Ni-MH
Speed Control:     4–6A brushless
Weight:     8.5 g (.30 oz)
Overall Diameter:     16mm (.63 in)
Shaft Diameter:     1.5mm
Overall Length:     20mm (.80 in)

Needed to Complete:

4-6A Brushless ESC

2-3S Li-Po or 4-8 cell Ni-Cd/Ni-MH

3 x 3 Direct Drive Prop
