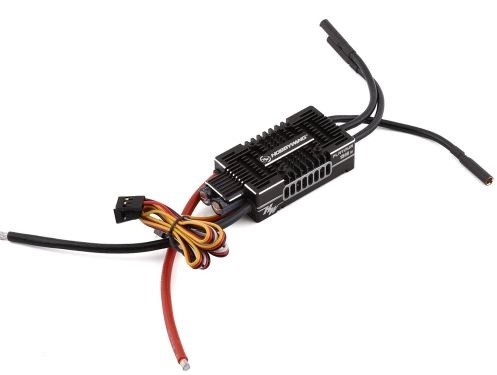

Hobbywing Platinum Pro 150A ESC V5 3-8s Brushless ESC

The Platinum V5 150A is the ideal companion for helicopter and fixed wing pilots. This ESC is equipped with the latest technology and offers a wide range of protection features. In addition, the construction has been changed in such a way that the air circulation couldn't be better.Since the two-sided structure of the board has been redesigned to improve heat dissipation.

You can see this in the "more open" design, which leads to a better cooling effect. The additional use of heat conducting tape and an additional heat sink extends the service life and improves heat dissipation on the sensitive external capacitors.Features:Efficient cooling through ventilation slots on two sides Equipped with "DEO" (Driving Efficiency Optimization) for the best control characteristics and performance Built-in LED for status display Including data recording, which can be called up via the OTA module on the smartphone Compatible with Mikado VBar Control and VBar Telemetry Ready Multiple protection functiction

FEATURES:

Efficient cooling through ventilation slots on two sides

Equipped with "DEO" (Driving Efficiency Optimization) for the best handling and performance

Built-in LED for status indication

Including data logging, retrievable via OTA module on smartphone

Compatible with Mikado VBar Control and VBar Telemetry Ready

Multiple security features

4 adjustable modes, plus 4 new braking modes: Fixed Wing / Helicopter - Linear Throttle / Helicopter - Elf Governor / Helicopter - Store Governor

SPECS:

Current duration/peak: 150A/180AA

Number of cells: 3-8S

BEC voltage: 5.4-8.4V

BEC current continuous/peak: 10A/30A

Battery/motor cable 1x 10AWG (red, black each) / 3x 12AWG (black)

Battery/motor connector: 4mm gold contact connector

Dimensions: 83x37x21mm

Weight: 140g

Usage: 550-580 electric helicopter (main rotor length 550-580mm)

INCLUDED:

1 x Platinum V5 150A controller

1 x manual
