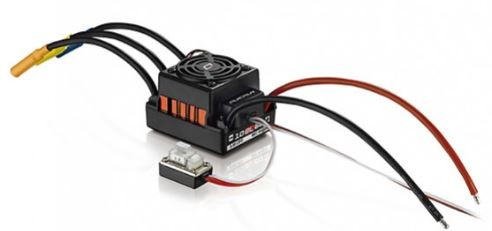

Hobbywing Quickrun 60A Sensorless Brushless Car ESC

The QuicRun WP 10BL60 ESC brushless sensorless is specially designed for new beginners and intermediate modelers. This ESC is applicable to all-weather sport of 1/10th short course trucks, buggies, trucks, and monster trucks.

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.

Reliable hardware combined with advanced software technology allows the QUICRUN 10BL60 to not only provide high power output but also overload protection of the ESC circuit.

The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this ESC compatible with various servos.

The waterproof and dust-proof design allows the QUICRUN WP-10BL60 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

FEATURES:

High Reliability and Durability

Efficient Cooling System

Easy Operation

Applicable to All Weather Conditions

Built-in BEC

Single-button Programming and Factory Reset

SPECS:

Scale: 1/10th

Brushed/Brushless: Brushless

Sensored/Sensorless: Sensorless

Waterproof: Yes

Cont./Peak Current: 60A/360A

Input: 2-3S LiPo/6-9 Cells NiMH

BEC Output: Switch Mode:6V/3A

Input Wires: Red-14AWG-150mm*1/Black-14AWG-150mm*1

Output Wires: Black-14AWG-100mm*3

Input Connectors: No

Output Connecotors: 4.0 Gold Connector (Female)

Fan Size: 30.0×30.0x10.0mm

Fan Voltage Range: 5-7.4V

Program Port: FAN/Program Port

Size: 48.5×38.0x32.0mm

Weight: 90g
