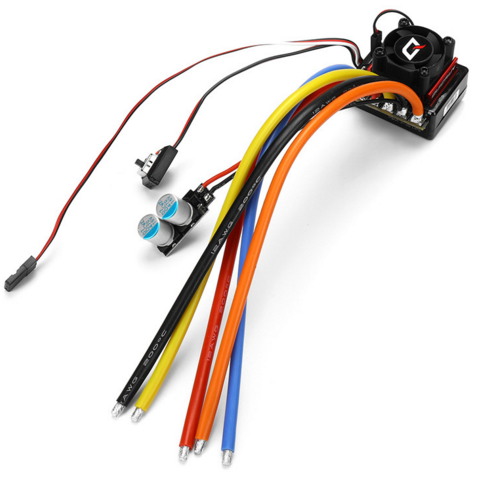

Hobbywing 120A QuicRun-10BL120-Sensored Car ESC

FEATURES:

High performance but low price, users can own this reliable race-ready ESC at an affordable cost.

Compact size, suitable for various car chassis

Auto identification system can recognize sensored / sensorless brushless motors automatically.

Core competition program for excellent control feels & multiple programmable items.

8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential

Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.

9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.

Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.

One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use. (purchase separately)

SPECS:

Cont. / Peak Current: 120A / 760A

Applicable: 1/10th and 1/12th RC Car.

Motor Limit:

4-6 cells NiMH / 2S LiPo: ≥3.5T (1/10 On-road), ≥4.5T (1/10 Off-road)

8-9 cells NiMH / 3S LiPo: ≥8.5T (1/10 On-road), ≥10.5T (1/10 Off-road)

Battery: 4-9 cells NiMH, 2-3S LiPo

BEC Output 6V@3A, Linear Mode

Cooling Fan: Powered by the battery

Dimensions/Weight: 43 x 36 x 33mm (w/ Fan) / 105g (w/ Wires and Fan)

Note: “T” indicates the limit value of motor turns when the ESC timing is set to 0 degree. The larger the timing, the more turns the motor needs. Please pay close attention to temperatures of the motor and the ESC to avoid any damage.
